Round Pile Croppers

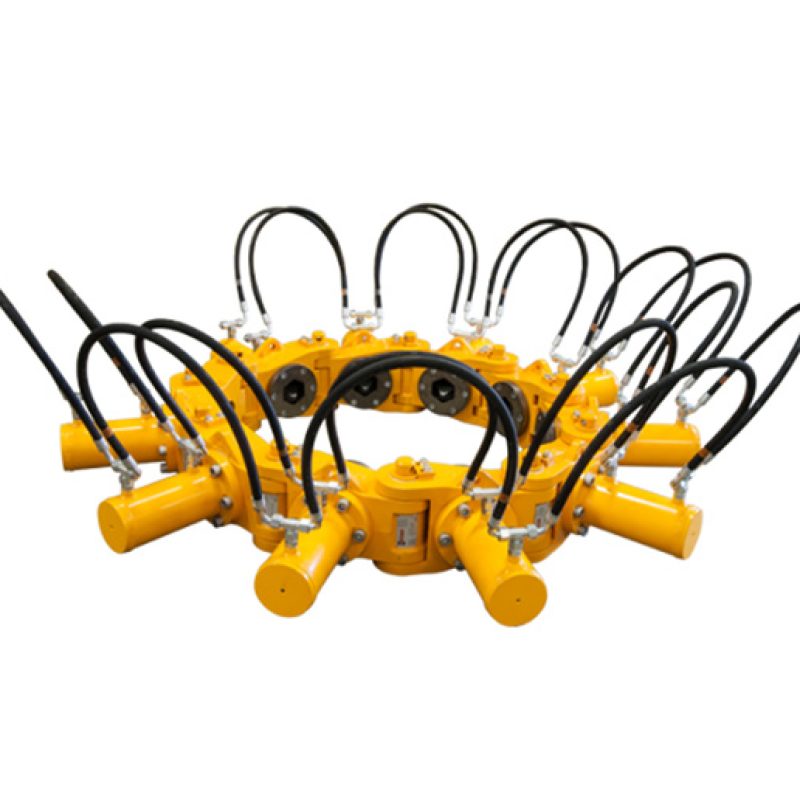

The pilebreakers type 340 and type 380 are highly modular systems that are easy to adjust to each pile diameter at site. The breaking will leave reinforcement intact and guarantees no cracks below the cut of level. The breaking process is many times faster the the conventional breaking and is fully controlled throughout it’s operation.
Handling and maintenance of the pilebreakers are very easy and don’t require special skills. To adjust the pilebreakers accurately to the pile features, “half-links” are available for both types. Because the “half-links” are without
More Information
TECHNICAL SPECIFICATION – 314 LINKS
| Pile Dimension | Number of links required | Excavator Required | Weight | Chains | Chanderlier |
| 300mm | 6 | 12+ Tons | 546 Kg | 3 leg chain | Square |
| 450mm | 6½ | 12+ Tons | 572 Kg | 3 leg chain | Square |
| 400mm | 7 | 12+ Tons | 637 Kg | 4 leg chain | Square |
| 450mm | 7½ | 12+ Tons | 662 Kg | 4 leg chain | Square/Hex |
| 500mm | 8 | 12+ Tons | 728 Kg | 4 leg chain | Square/Hex |
| 550mm | 8 ½ | 12+ Tons | 753 Kg | 4 leg chain | Square/Hex |
| 600mm | 9 | 12+ Tons | 819 Kg | 2 x three leg / 4 single chains | Square/Hex |
| 650mm | 9½ | 12+ Tons | 844 Kg | 2 x three leg / 4 single chains | Hexagonal |
| 700mm | 10 | 12+ Tons | 910 Kg | 2 x three leg / 5 single chains | Hexagonal |
| 750mm | 10½ | 12+ Tons | 936 Kg | 2 x three leg / 5 single chains | Hexagonal |
| 800mm | 11 | 12+ Tons | 1001 Kg | 2 x three leg / 6 single chains | Hexagonal |
| 850mm | 11½ | 20+ Tons | 1026 Kg | 2 x three leg / 6 single chains | Hexagonal |
| 900mm | 12 | 20+ Tons | 1092 Kg | 2 x three leg / 6 single chains | Hexagonal |
| 950mm | 12½ | 20+ Tons | 1117 Kg | 2 x three leg / 6 single chains | Hexagonal |
| 1000mm | 13 | 20+ Tons | 1183 Kg | 2 x three leg / 6 single chains | Hexagonal |
| 1100mm + | See 380 Link Specification | ||||
TECHNICAL SPECIFICATION – 380 LINKS
| Pile Dimension | Number of links required | Excavator Required | Weight | Chains | Chanderlier |
| 700mm | 9 | 22+ Tons | 2010 Kg | 2 x 4leg. 5 x single | 8 Point |
| 800mm | 10 | 22+ Tons | 2200 Kg | 2 x 4leg. 5 x single | 8 Point |
| 900-1000mm | 11 | 22+ Tons | 2432 Kg | 2 x 4leg. 5 x single | 8 Point |
| 1250mm | 13 | 25+ Tons | 2856 Kg | 2 x 4leg. 6 x single | 8 Point |
| 1500mm | 15 | 25+ Tons | 3280 Kg | 2 x 4leg. 7 x single | 8 Point |
| 1800mm | 18 | 30+ Tons | 3916 Kg | 2 x 4leg. 8 x single | 8 Point |
