Rockwheel (Rotary Drum Cutter)

Transverse Cutter

Antraquip manufactures and distributes an extensive line of hydraulic rock cutters for a range of applications in the construction, mining, tunneling and energy industries. Our hydraulic cutters are suitable for material with uniaxial compressive strength (UCS) ranging from 500 to 25,000 PSI. Product innovation and advanced technology is the philosophy behind our transverse and axial cutters. Antraquip hydraulic rock cutters include:

  • All American-made parts & components
  • Powerful high torque hydraulic motors
  • Robust cutting drums to ensure maximum production & prolonged life
  • Customizable drums to accommodate performance maximized applications

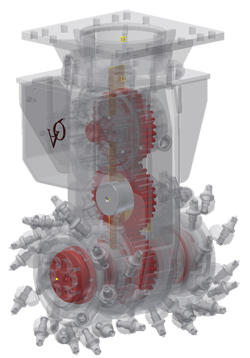

  • Durable spur gears & housing





Technical Data Unit AQ-1S AQ-1 AQ-2 AQ-3

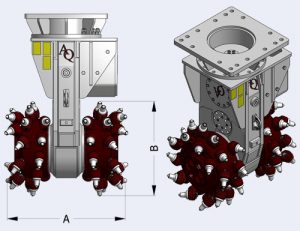

Cutting Head Diameter (B) in (mm) 9 (230) 11 (280) 15 (380) 22 (560)
Cutting Head Width (A) in (mm) 19 (485) 21 (535) 25 (635) 31 (790)
Oil Flow gpm (l/min) 5-12 (20-45) 8-20 (30-75) 12-26 (45-100) 30-45 (110-170)
Max Pressure psi (bar) 5,800 (400) 5,800 (400) 5,800 (400) 5,800 (400)
Max Torque ft lbs (Nm) 1,196 (1.620) 2,625 (3.560) 4,370 (5.925) 8,740 (11.850)
Max Cutting Force lbs (N) 3,315 (14.750) 5,717 (25.440) 7,028 (31.275) 9,545 (42.475)
Operating Weight lbs (kg) 230 (105 635 (290) 1010 (460) 2045 (930)
Carrier Size Class tons 1-3 2-8 5-15 12-20
